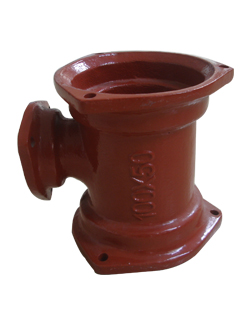

| T三通 | 公称直径 | L/mm | A/mm | B/mm | C/mm | E/mm | |
| DN | dn | ||||||
| 50 | 50 | 145 | 20 | 79 | 80 | 66 | |
| 75 | 50 | 155 | 22 | 83 | 90 | 73 | |
| 75 | 75 | 185 | 22 | 98 | 95 | 83 | |
| 100 | 50 | 170 | 22 | 84 | 105 | 76 | |
| 100 | 75 | 100 | 22 | 102 | 115 | 88 | |
| 100 | 100 | 220 | 22 | 115 | 115 | 105 | |
| 150 | 50 | 200 | 27.5 | 100 | 140 | 100 | |
| 150 | 75 | 220 | 27.5 | 120 | 140 | 100 | |
| 150 | 100 | 245 | 27.5 | 130 | 145 | 115 | |
| 150 | 150 | 300 | 27.5 | 150 | 155 | 142 | |
| 200 | 100 | 270 | 32.5 | 144 | 175 | 126 | |
| 200 | 125 | 295 | 32.5 | 156 | 180 | 138 | |
| 200 | 150 | 325 | 32.5 | 173 | 185 | 152 | |
| 200 | 200 | 360 | 32.5 | 180 | 200 |
180 |
|
